PTFE mesh membrane covered with film is a high-performance composite material comprising a glass fiber mesh substrate coated with polytetrafluoroethylene (PTFE) and bonded with a functional film. It integrates the structural strength of the mesh with PTFE’s inherent weather resistance and self-cleaning properties, while the film layer enhances anti-fouling, light transmission, or thermal insulation capabilities. Engineered for large-span applications such as roofs, shelters, and facade cladding, it offers lightweight, durable, and form-flexible solutions. This premium material seamlessly unites structural integrity, functional protection, and architectural aesthetics, making it ideal for demanding modern building projects.
PTFE Mesh Membrane Covered With FilmSpecification：KT-FM5000
|
Characteristic parameter
|
Unit
|
Test Method
|
Numerical value
|
|
Base fabric
|
|
DIN 6001
|
EC6
|
|
Coating
|
|
|
PTFE
|
|
Surface Treatment
|
|
|
Weather resistant surface coating
|
|
Base fabric weight
|
g/m²
|
DIN 53584
|
750
|
|
Coated weight
|
g/m²
|
DIN 53584
|
1000g/m²
|
|
Thickness
|
mm
|
DIN 53353
|
|
|
Tensile strength
|
N/5cm
|
DIN 53354
|
5000/4000
|
|
Tensile strength
|
N
|
DIN 53356
|
500/400
|
|
Transmittance
|
@550nm
|
DIN EN 410
|
40%~45%
|
|
Flame retardant grade
|
|
DIN 4102-1
|
A2
|
|
Resistance to water infiltration
|
mmH2O
|
ISO 811:1981
|
10000
|
|
Peel strength
|
N/5cm
|
DIN 53357
|
10
|
|
Performance characteristics
|
|
Strength performance
|
Flame retardant performance
|
Chemical resistance performance
|
Climate resistance performance
|
Cleaning performance
|
Energy conservation
|
Dimensional stability performance: Operating temperature range -73℃~288℃
|
Welding performance
|
|
High Strength performance
|
Fireproof
|
Chemical Inertness
|
Perfect
|
Self-cleaning
|
√
|
√
|
--
|
|

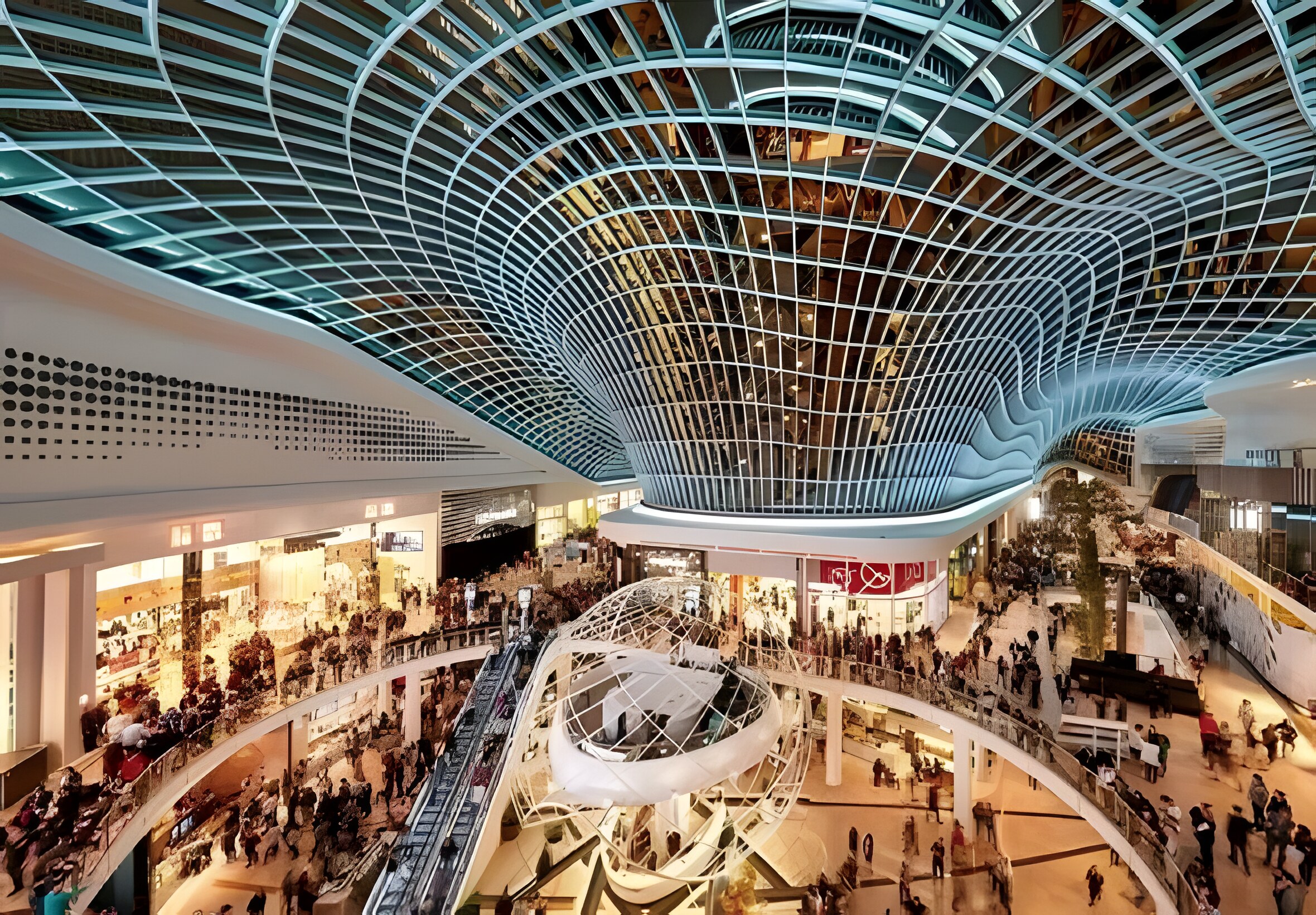

Application scope
|
|
Structure
|
Long span permanent structures
|
|
For example
|
Flexible Design, Creative and Unique Architectural Membranes and Roofing Systems
|
Other Standards (KRS) Eco-Care (Ecological Care Certification):
The above data are based on relevant standard specifications with a tolerance of ±8%, provided for reference only.
